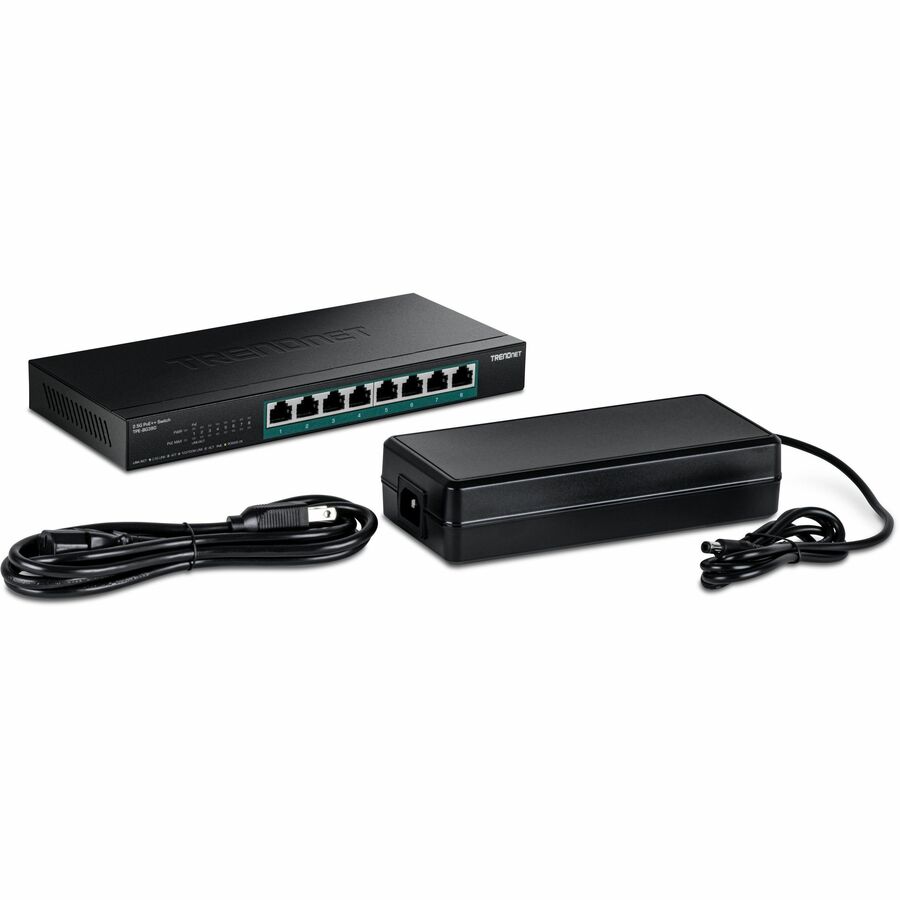

TRENDnet 8-Port 2.5G PoE++ Switch, TPE-BG380, 8 x 2.5GB PoE++ Ports

TRENDnet

TPE-BG380

TRENDnet

TPE-BG380

TPE-BG380 Ethernet Switch

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.

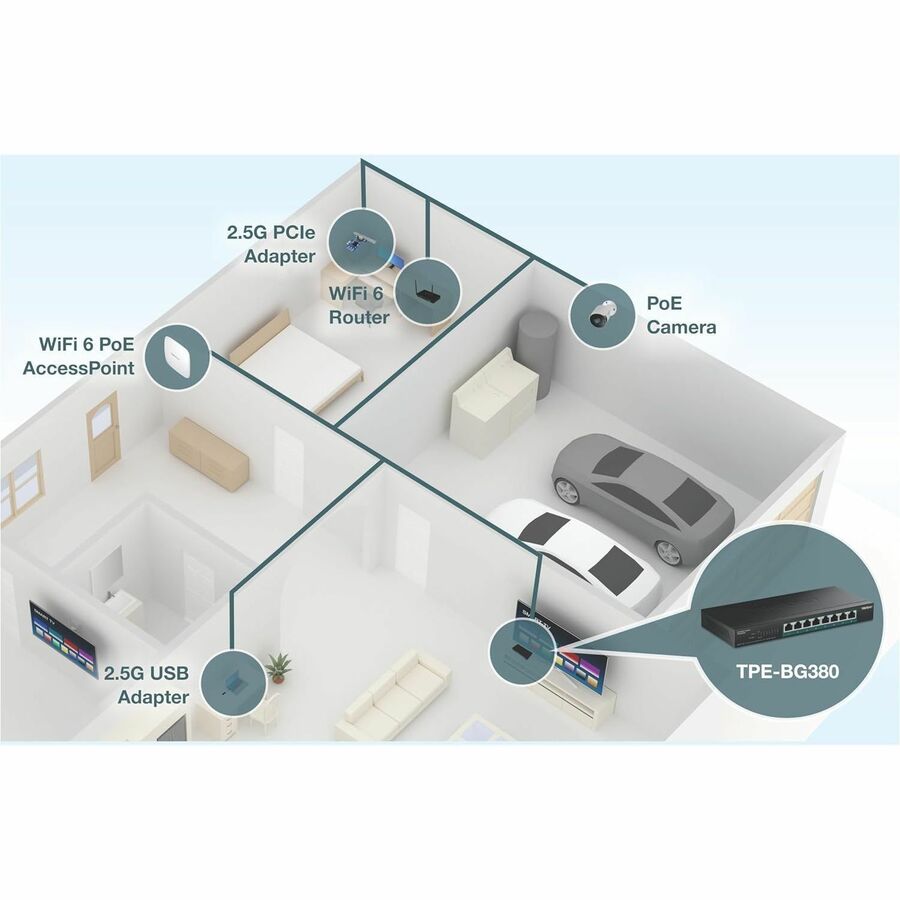

TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this highpower 2.5 gigabit PoE++ switch.

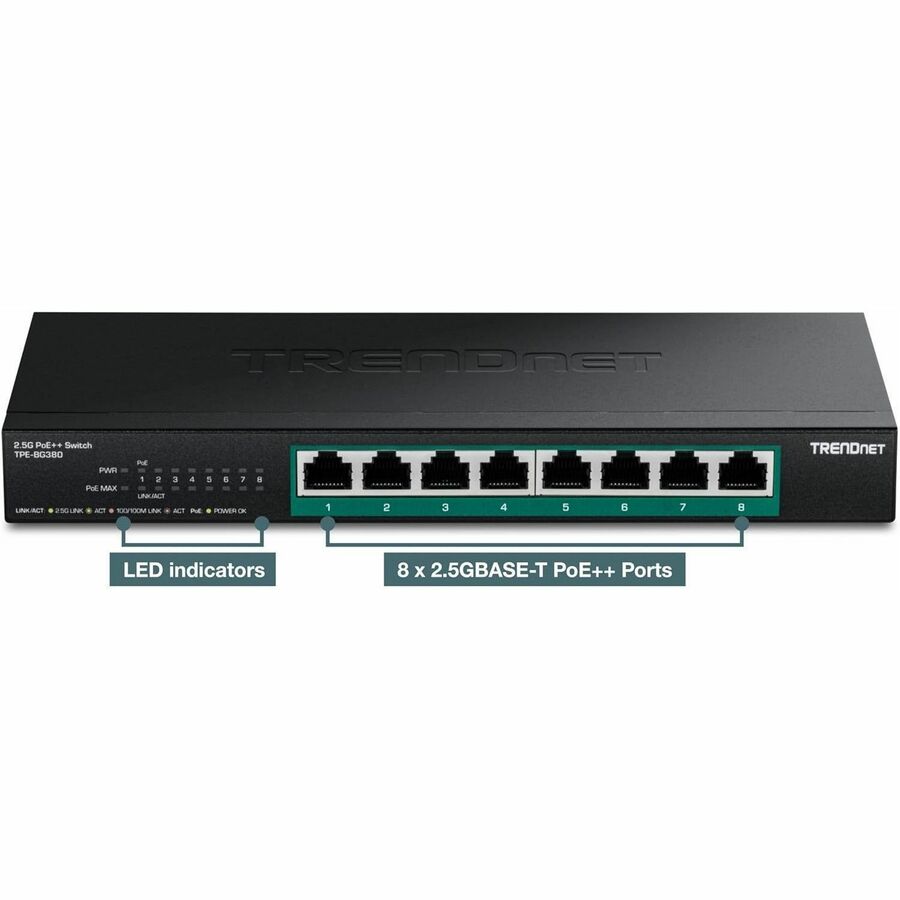

• POE+ POWER & SWITCHING CAPACITY: Equipped with 40Gbps switching capacity, and a 230W PoE power budget with over current and short circuit protection. PoE++ reduces equipment cost by delivering data and power over existing network cables 2.5 GIGABIT PORTS: Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-BG380 8-Port 2.5G PoE++ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• BACKWARD COMPATABILITY: The 8 Port network switch is backwards compatible with 10/100/1000Mbps legacy devices
• FANLESS DESIGN: The fanless 8 Port 2.5G PoE++ switch design lowers unnecessary energy consumption and eliminates disruptive operating noise
• JUMBO FRAME: Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
• IEEE 802.3af/at/bt compliant

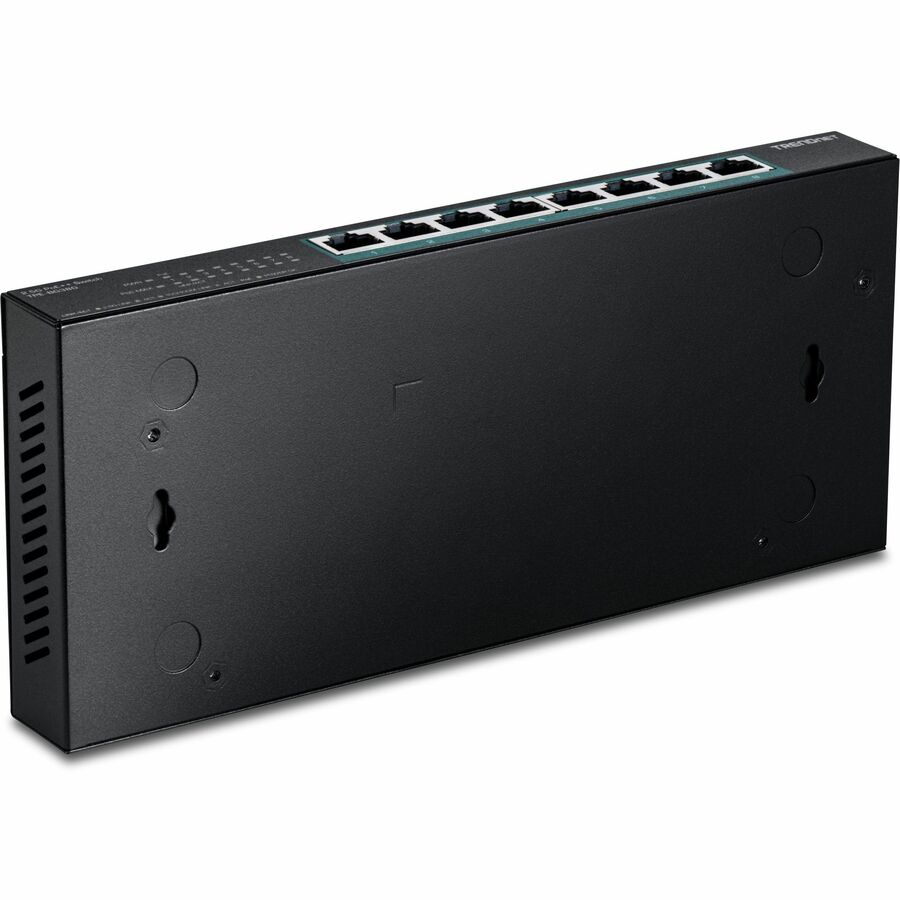

• WALL MOUNTABLE: The 2.5G PoE++ switch features a metal housing, and a convenient wall mountable design for greater installation flexibility.

More from the Manufacturer

10

Ethernet Switch

Fanless

8

Yes

8 x 2.5Gigabit Ethernet PoE++ Ports

Twisted Pair

2.5 Gigabit Ethernet

2.5GBase-T

640 MB/s

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3bz

No

288800 Hour

230 W

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• PoE++
• Power Adapter
• AC

9.50 W

• Wall Mountable
• Desktop

1.1″

9.4″

4.1″

1.58 lb

• Wireless Access Point
• Network
• Camera
• Digital Signage

Yes
